Most operational problems are not people problems. They are process problems wearing a people costume. When a handoff fails, an approval stalls, or the same data gets re-entered three times, the root cause is almost always a process that no one has ever drawn on a single page. Business process mapping is the discipline of making that invisible structure visible — so you can reason about it, improve it, and eventually automate it.

Untangling complex operations into clear, actionable maps.

This guide covers what process mapping is, the notations worth knowing, a repeatable method to map any process, the pitfalls that quietly waste the effort, and how a good map becomes the blueprint for automation.

What Business Process Mapping Actually Is

A process map is a model of how work moves from a trigger to an outcome: the steps, the decisions, the people and systems involved, and the inputs and outputs at each stage. It is not a flowchart for its own sake. It is a shared, precise description of reality that a whole team can agree on.

That precision matters because processes are systems. A change to one step ripples into others. Without a model, every improvement is a guess. With one, you can see dependencies, locate bottlenecks, and predict the effect of a change before you make it.

There are two maps worth distinguishing:

  • As-is — how the process actually runs today, including the workarounds and exceptions.
  • To-be — the redesigned version you intend to implement.

Skipping the as-is is the most common and most expensive shortcut. You cannot improve a process you have only imagined.

Notations and Approaches Worth Knowing

You do not need to master every notation. You need the right level of detail for the question you are answering.

SIPOC — the one-page scope

SIPOC (Suppliers, Inputs, Process, Outputs, Customers) is a high-altitude summary used before detailed mapping. In five columns it captures who supplies what, the handful of major process steps, what comes out, and who receives it. Use it to align stakeholders on scope and boundaries before anyone argues about step 14.

Swimlanes — who owns what

A swimlane (or cross-functional) diagram places each step in a “lane” belonging to a role, team, or system. Its great strength is exposing handoffs: every time an arrow crosses a lane boundary, you have a point where work waits, context is lost, or accountability blurs. For most operational processes, swimlanes are the highest-value view.

BPMN — the precise standard

Business Process Model and Notation (BPMN) is the formal standard for process modeling. You can be fluent with a small subset:

  • Events (circles) — start, intermediate, and end points.
  • Activities (rounded rectangles) — the tasks performed.
  • Gateways (diamonds) — decisions and parallel splits or merges.
  • Sequence flows (arrows) — the order of execution.

BPMN matters because it is unambiguous and because many automation engines can execute it directly. A BPMN model is closer to runnable software than any other notation, which is why it is the natural bridge from mapping to automation.

A Step-by-Step Method to Map a Process

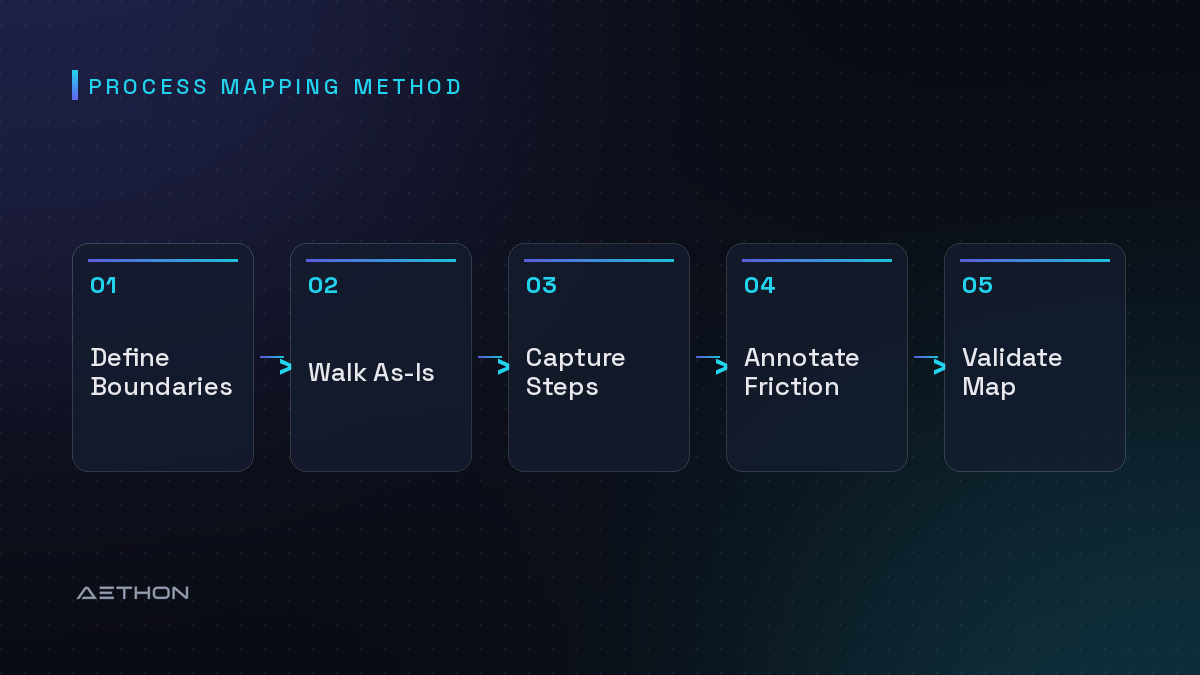

Process Mapping Method — Define Boundaries to Walk As-Is to Capture Steps to Annotate Friction to Validate Map

A consistent method keeps maps comparable and prevents the common drift into either uselessly vague or hopelessly detailed diagrams.

  1. Define the boundaries. Name the trigger that starts the process and the outcome that ends it. A process without clear endpoints expands forever. Draft a SIPOC to lock scope.
  2. Identify the participants. List every role and system that touches the work. These become your swimlanes.
  3. Walk the as-is with the people who do it. Interview practitioners, not just managers. Ask them to narrate a real recent instance, step by step. The official process and the actual process are rarely identical, and the gap is where the value hides.
  4. Capture steps, decisions, and handoffs. Use one verb-noun per activity (“approve invoice,” “verify address”). Mark every decision as a gateway with explicit conditions. Note each handoff between lanes.
  5. Add the exceptions. What happens when data is missing, an approval is denied, or a customer changes their mind? Exceptions are where processes break in production, so they belong on the map.
  6. Annotate the friction. Mark wait times, rework loops, manual data re-entry, and steps that exist only because of a system limitation. These annotations are your improvement backlog.
  7. Validate with the team. Walk the finished map back to the people who described it. If they cannot recognize their own work, the map is wrong.

Only after the as-is is honest and validated should you design the to-be.

Common Pitfalls

  • Mapping the ideal instead of the real. A map that omits workarounds describes a process that does not exist.
  • Wrong altitude. Boiling the ocean with hundreds of micro-steps, or staying so abstract the map says nothing. Match detail to purpose.
  • Mapping in isolation. Maps built by one analyst in a room are fiction. Map with the people who do the work.
  • Treating the map as the deliverable. The map is an instrument, not the goal. If it does not change a decision or an implementation, it was overhead.
  • Letting it rot. Processes drift. An unmaintained map quietly becomes misinformation.

From Map to Automation

Bolting a tool onto a broken flow just makes the breakage faster.

A well-made map is also an automation specification. Once you can see the process clearly, the automation candidates announce themselves:

  • Repetitive, rule-based steps — data entry, status updates, routing — are direct automation targets.
  • Handoffs across lanes are where orchestration adds the most value, replacing email-and-wait with reliable triggers.
  • Decision gateways with clear rules can be encoded; gateways that need judgment are where a human (or a governed AI agent) stays in the loop.

This is the systems-first principle we apply at Aethon: we automate the process, not isolated tasks. Bolting a tool onto a broken flow just makes the breakage faster. That is why our Intelligent Operations work begins with a validated map before a single workflow is built — and why governance, audit trails, and human oversight are designed into the to-be from the start rather than retrofitted.

The map also gives you a baseline to measure against. Annotated wait times and rework loops become the before-state; after automation, the same map shows what actually improved. That measurable, system-level thinking is the core of how we think about building — systems, not features.

Closing

Business process mapping is not paperwork. It is the act of turning tacit, scattered knowledge into a model you can reason about, improve, and run. Map the as-is honestly, design the to-be deliberately, and the path to automation stops being a leap of faith and becomes an engineering decision.
